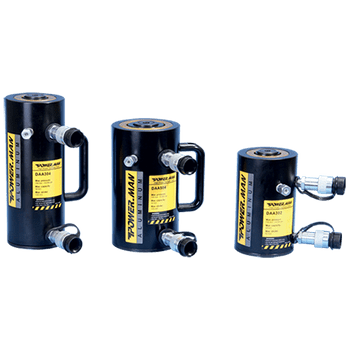

DAA Series
Double-Acting Aluminium Cylinders
- Double acting lightweight and easily portable
- Hard casting, wear and scratch resistant
- Adjustable safety valve in order to dampen the cylinder excessive pressure.
- Steel base plate and saddle prevents load induced damage
| Model Number | Capacity ton(kN) | Stroke(mm) | Collapsed Height(mm) | (kg) |
|---|---|---|---|---|
| DAA-202 | 20 | 50 | 190 | 4.6 |
| DAA-204 | 20 | 100 | 240 | 5.5 |
| DAA-206 | 20 | 150 | 290 | 7 |
| DAA-302 | 30 | 50 | 195 | 6.4 |
| DAA-304 | 30 | 100 | 245 | 7.7 |
| DAA-306 | 30 | 150 | 295 | 9 |
| DAA-502 | 50 | 50 | 200 | 8.7 |
