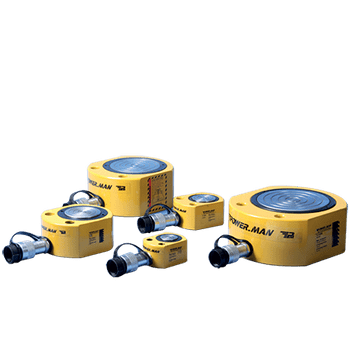

FJ Series
Flat-jack Cylinders
- Suitable design for compact and flat spaces
- Single-acting cylinders with refractive spring
- Suitable for use in all positions (vertical and horizontal)
- Lightweight and easily portable
- Dust cap coupler included all models
- Separable handles included on 100 and 150 ton models
- Mounty holes allow easy insulation
| Model Number | Capacity ton(kN) | Stroke(mm) | Collapsed Height(mm) | (kg) |
|---|---|---|---|---|
| FJ-50 | 5 | 6 | 33 | 1.1 |
| FJ-100 | 10 | 12 | 47 | 1.5 |
| FJ-200 | 20 | 11 | 53 | 3.2 |
| FJ-300 | 30 | 13 | 62 | 4.7 |
| FJ-500 | 45 | 16 | 72 | 7 |
| FJ-1000 | 90 | 16 | 90 | 15 |
| FJ-1500 | 150 | 16 | 105 | 27 |
