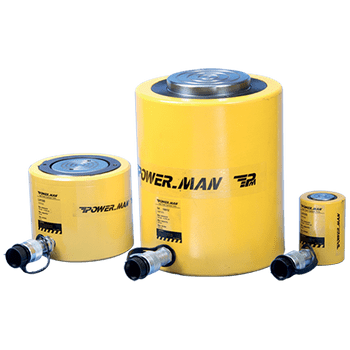

LH Series
Low Height Cylinders
- Appropriate for use in confined spaces
- Light weight and easily to carry
- Suitable for use in all positions
- Heavy duty heat treated steel spring has improved retraction of the plunger
- Dust cap coupler included on all models
- Integral handle on LH-100
| Model Number | Capacity ton(kN) | Stroke(mm) | Collapsed Height(mm) | (kg) |
|---|---|---|---|---|
| LH-10 | 10 | 38 | 88 | 4.1 |
| LH-20 | 20 | 45 | 98 | 5.2 |
| LH-30 | 30 | 62 | 117 | 7 |
| LH-50 | 45 | 60 | 122 | 11 |
| LH-100 | 90 | 57 | 141 | 23 |
