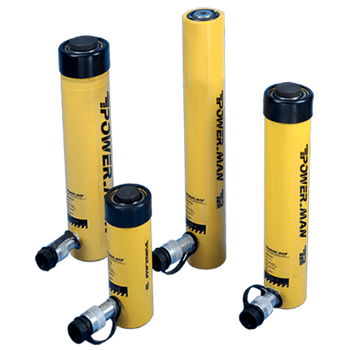

SA Series
Single-Acting Cylinders
- Single - Acting Cylinder with retractor spring
- Collar threads, Plunger threads and base mounting holes enable easy fix turning
- Suitable for use in all positions
- Heat treated spring has improved easy retraction of the plunger
- Coupler and dust cap included on all models
- Handles are available for 50 and 100 tons models
| Model Number | Capacity ton(kN) | Stroke(mm) | Collapsed Height(mm) | (kg) |
|---|---|---|---|---|
| SA-50 | 5 | 16 | 45 | 1 |
| SA-51 | 5 | 25 | 115 | 1 |
| SA-53 | 5 | 75 | 173 | 1.5 |
| SA-55 | 5 | 127 | 235 | 1.9 |
| SA-101 | 10 | 26 | 95 | 1.8 |
| SA-102 | 10 | 51 | 125 | 2.3 |
| SA-104 | 10 | 102 | 180 | 3.3 |
| SA-106 | 10 | 152 | 265 | 4.4 |
| SA-108 | 10 | 202 | 315 | 5.4 |
| SA-1010 | 10 | 252 | 365 | 6.4 |
| SA-1012 | 10 | 302 | 420 | 6.8 |
| SA-151 | 15 | 25 | 130 | 3.3 |
| SA-152 | 15 | 51 | 150 | 4.1 |
| SA-154 | 15 | 102 | 211 | 5 |
| SA-156 | 15 | 152 | 275 | 6.8 |
| SA-158 | 15 | 202 | 325 | 8.2 |
| SA-1510 | 15 | 252 | 380 | 8.2 |
| SA-1512 | 15 | 302 | 440 | 11 |
| SA-251 | 25 | 26 | 143 | 3.3 |
| SA-252 | 25 | 51 | 165 | 6.4 |
| SA-254 | 25 | 102 | 227 | 8.2 |
| SA-256 | 25 | 152 | 277 | 10 |
| SA-258 | 25 | 202 | 334 | 12.2 |
| SA-2510 | 25 | 252 | 384 | 14.1 |
| SA-2512 | 25 | 302 | 440 | 16.5 |
| SA-502 | 50 | 51 | 180 | 15 |
| SA-504 | 50 | 102 | 237 | 19.1 |
| SA-506 | 50 | 152 | 295 | 23.1 |
| SA-5013 | 50 | 332 | 480 | 39.5 |
| SA-1006 | 100 | 168 | 365 | 61.7 |
| SA-10010 | 100 | 260 | 470 | 74.8 |
