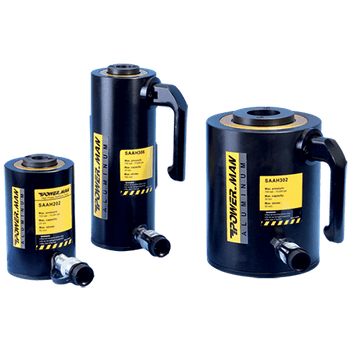

SAAH Series
Single-Acting Aluminium Hollow Cylinders
- Single - Acting Cylinder with retractor spring
- Hollow plunger allows for dual action
- Handle are included on all models
- Steel base plat and saddle prevents load included damage
- Suitable for use in all positions (vertical and horizontal)
| Model Number | Capacity ton(kN) | Stroke(mm) | Collapsed Height(mm) | (kg) |
|---|---|---|---|---|
| SAAH-202 | 20 | 50 | 175 | 4.8 |
| SAAH-204 | 20 | 100 | 225 | 6.3 |
| SAAH-206 | 20 | 150 | 275 | 8 |
| SAAH-302 | 30 | 50 | 183 | 8.3 |
| SAAH-304 | 30 | 100 | 233 | 9.7 |
| SAAH-306 | 30 | 150 | 283 | 11.3 |
| SAAH-602 | 50 | 50 | 187 | 17.9 |
| SAAH-604 | 50 | 100 | 237 | 19.5 |
| SAAH-606 | 50 | 150 | 287 | 23 |
| SAAH-1002 | 100 | 50 | 270 | 40 |
| SAAH-1004 | 100 | 100 | 320 | 45.5 |
