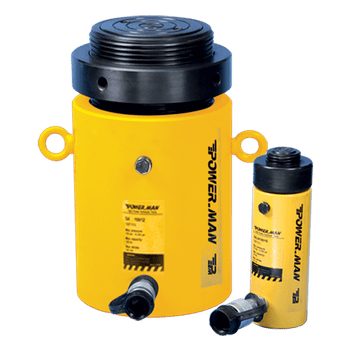

SALN Series
Single-Acting, Lock Nut Cylinders
- Single acting Cylinder, load return
- Safety lock nut for extended load support
- Replaceable flat and universal joint saddle
- Dust coupler included on all models
- Separable handles included on all models
| Model Number | Capacity ton(kN) | Stroke(mm) | Collapsed Height(mm) | (kg) |
|---|---|---|---|---|
| SALN-502 | 50 | 50 | 166 | 15 |
| SALN-504 | 50 | 100 | 216 | 20 |
| SALN-506 | 50 | 150 | 266 | 25 |
| SALN-508 | 50 | 200 | 316 | 30 |
| SALN-5010 | 50 | 250 | 366 | 35 |
| SALN-5012 | 50 | 300 | 416 | 40 |
| SALN-1002 | 100 | 50 | 188 | 30 |
| SALN-1004 | 100 | 100 | 238 | 39 |
| SALN-1006 | 100 | 150 | 288 | 48 |
| SALN-1008 | 100 | 200 | 338 | 57 |
| SALN-10010 | 100 | 250 | 388 | 66 |
| SALN-10012 | 100 | 300 | 438 | 75 |
| SALN-1502 | 150 | 50 | 210 | 53 |
| SALN-1504 | 150 | 100 | 260 | 66 |
| SALN-1506 | 150 | 150 | 310 | 78 |
| SALN-1508 | 150 | 200 | 360 | 93 |
| SALN-15010 | 150 | 250 | 410 | 105 |
| SALN-15012 | 150 | 300 | 460 | 118 |
