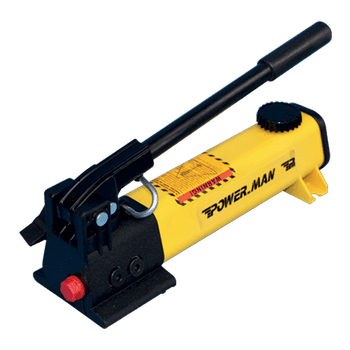

HP Series
Hand Pumps
- Designed to be small in size and light weight
- Wear resistant oil reservoir made of polyamide fiber shell
- Pump body made of aluminum alloy with nylon coating to prevent corrosion and damage
- High flow rate based on high efficient pump
- Two speed pump operation reduces handle stroke and therefore lowers handle efforts
- Handle lock for easy transportation
- Release valve expedite oil return to pump reservoir
- Pressure relief valve dampens excessive pressure
- Various oil tank capacity proportional with the pump model
| Model Number | Usable Oil Capacity(cm³) | 1ˢᵗ Stage Pressure Rating(bar) | 2ⁿᵈ Stage Pressure Rating(bar) | 1ˢᵗ Oil Displacement/Stroke(cm³) | 2ⁿᵈ Oil Displacement/Stroke(cm³) | Weight(kg) |
|---|---|---|---|---|---|---|
| HP-462 | 7423 | 14 | 700 | 130 | 4.65 | 27.7 |
| HP-464 | 7423 | 14 | 700 | 130 | 4.65 | 27.7 |
| HP-700 | 1500 | 25 | 700 | 30 | 2.5 | 25 |
| HP-142 | 330 | 15 | 700 | 3.6 | 0.9 | 2.4 |
| HP-392 | 901 | 15 | 700 | 11.3 | 2.45 | 4.1 |
