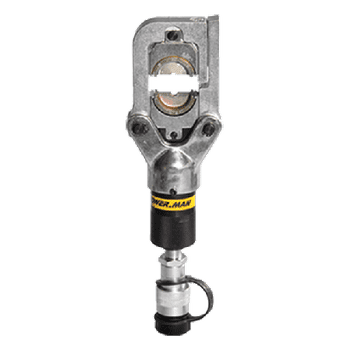

CRP Multi
Hydraulic Crimping Head
- Easily replaceable die
- It is easy to open jaws hinges
- Capable of generating 6 tons force
- Singe acting cylinder with return spring
- Crimping dies from 6 to 300 mm²
- Rotating head 360 degrees
- It is possible to connect it to 700 bars pump
- Easily connectable coupler with cap
- Metallic case

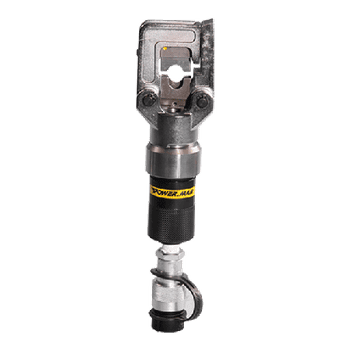

CRP 50
Hydraulic Crimping Head
- Ideal tool for pressing and cutting mine steel wire
- 16 mm² cutting dies included
- Connectable to various 700 bar hydraulic pump cross ponding to the requirement of the system
- Easily replaceable die
- Single acting cylinder with return spring
- It is easy to open jaws hinges
- Metallic case

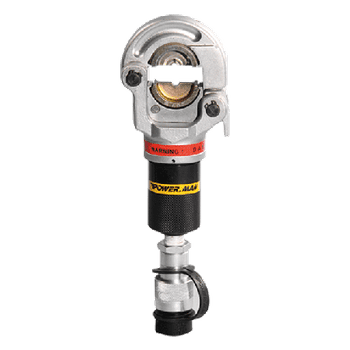

CRP 60
Hydraulic Crimping Head
- Ideal tool for crimping cable lugs from 6 to 300mm²
- 13 pairs of high strength dies
- Small and proper for narrow and limited spaces
- Generating about 60kN force
- Easily replaceable die
- Singe acting cylinder with return spring
- 360 degrees rotatable head
- It is possible to connect it to a 700 bar pump
- Light weight metal case with die series
- Capable of generating 13 tons force
- Steel case

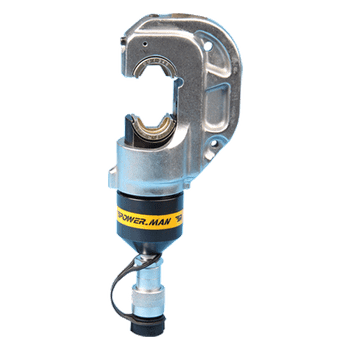

CRP 120
Hydraulic Crimping Head
- Ideal tool for crimping cable lugs from 16 to 400mm² (aluminum & copper)
- 12 standard dies set
- Generating 130 KN of force
- C-shape opening provides speedy operation
- Singe acting cylinder with return spring
- Easily replaceable die
- Shorter pressing duration up to 60% less than 6 ton models)
- It is possible to connect it to a 700 bar pump
- Metallic case

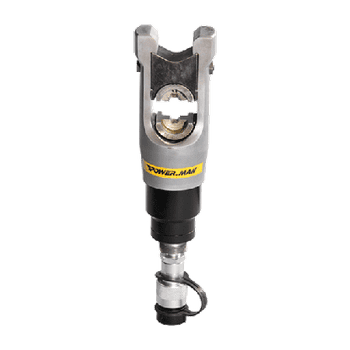

CRP 130
Hydraulic Crimping Head
- Ideal tool for crimping cable lugs from 16 to 400mm²
- 12 standard dies set
- Shorter pressing duration than 6 ton models
- It is possible to connect it to a 700 bar pump
- Speedy coupling with cap
- Light weight metal case

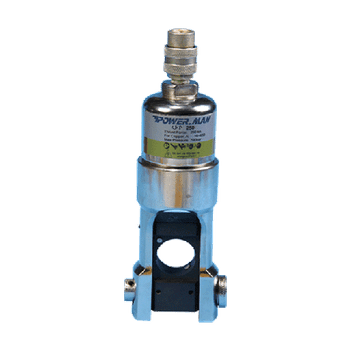

CRP 250
Hydraulic Crimping Head
- Ideal tool for pressing aluminum and copper cable lugs 16 t0 630 mm²
- 14 pairs of high strength dies
- Dies are easily replaceable
- Single acting cylinder with return spring
- It is possible to connect it to various 700 bar pumps
- Coupler with cap
- Fabricated from coated steel alloy
- Steel case

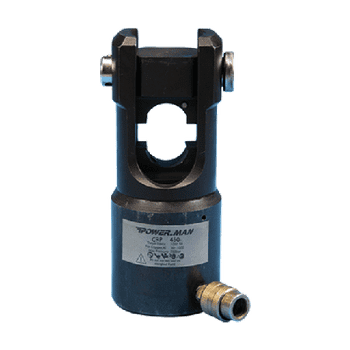

CRP 450
Hydraulic Crimping Head
- Ideal tool for pressing cable lugs 150 to 1000 mm²
- 7 pairs of dies
- Speedy replacement of die is possible
- Generating force equal to 450kN (45ton)
- Single acting cylinder with return spring
- Fabricated from coated steel alloy
- Possible to connect it to different types of 700 bar pumps

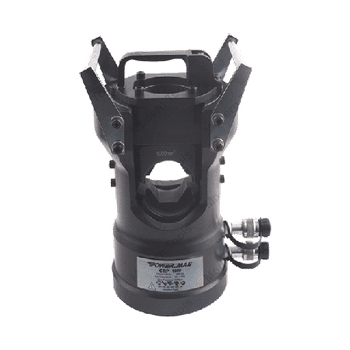

CRP 1000
Hydraulic Crimping Heads
- Ideal tool for pressing underground and aboveground cable lugs with wide range of dies
- Quick interchangeable dies
- Double acting cylinder (100 and 200 tons)
- Connectable to different types of 700 bar pumps
- Quick connecting coupling with cap
- Fabricated from steel alloy
- Metal Case
